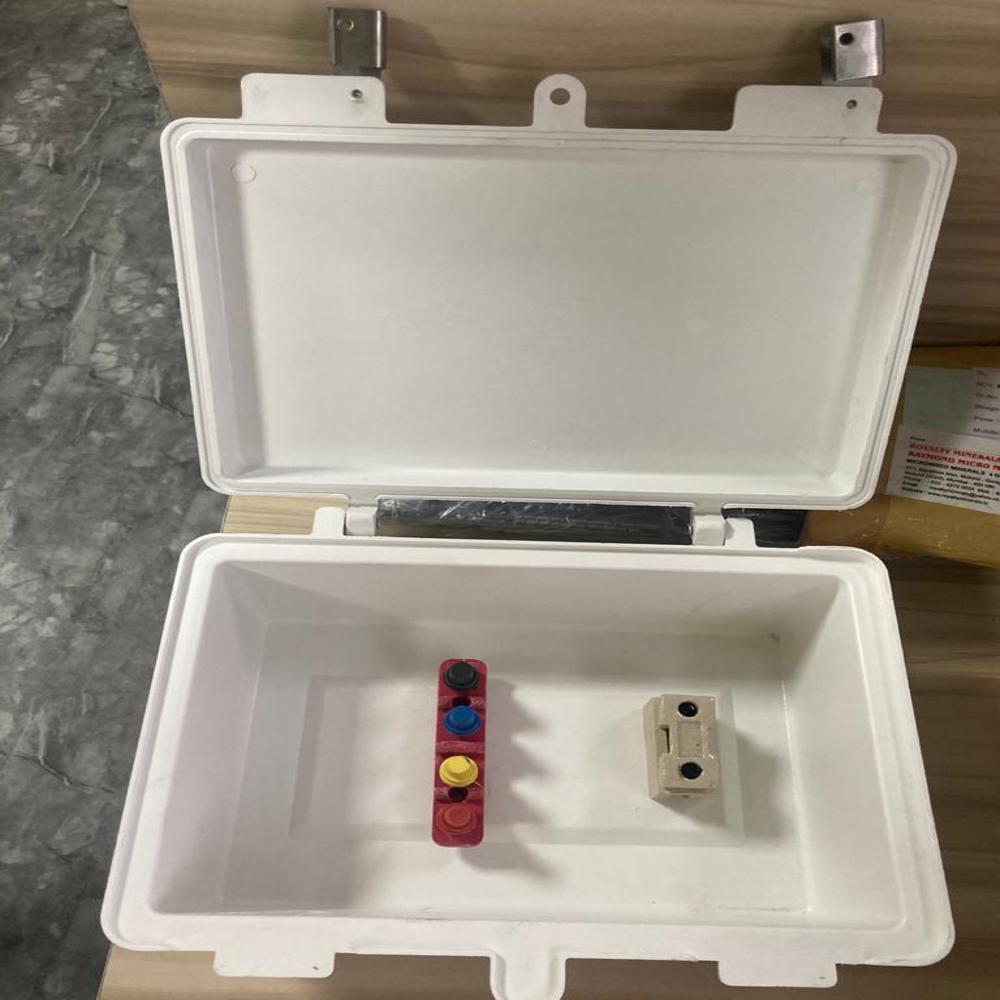

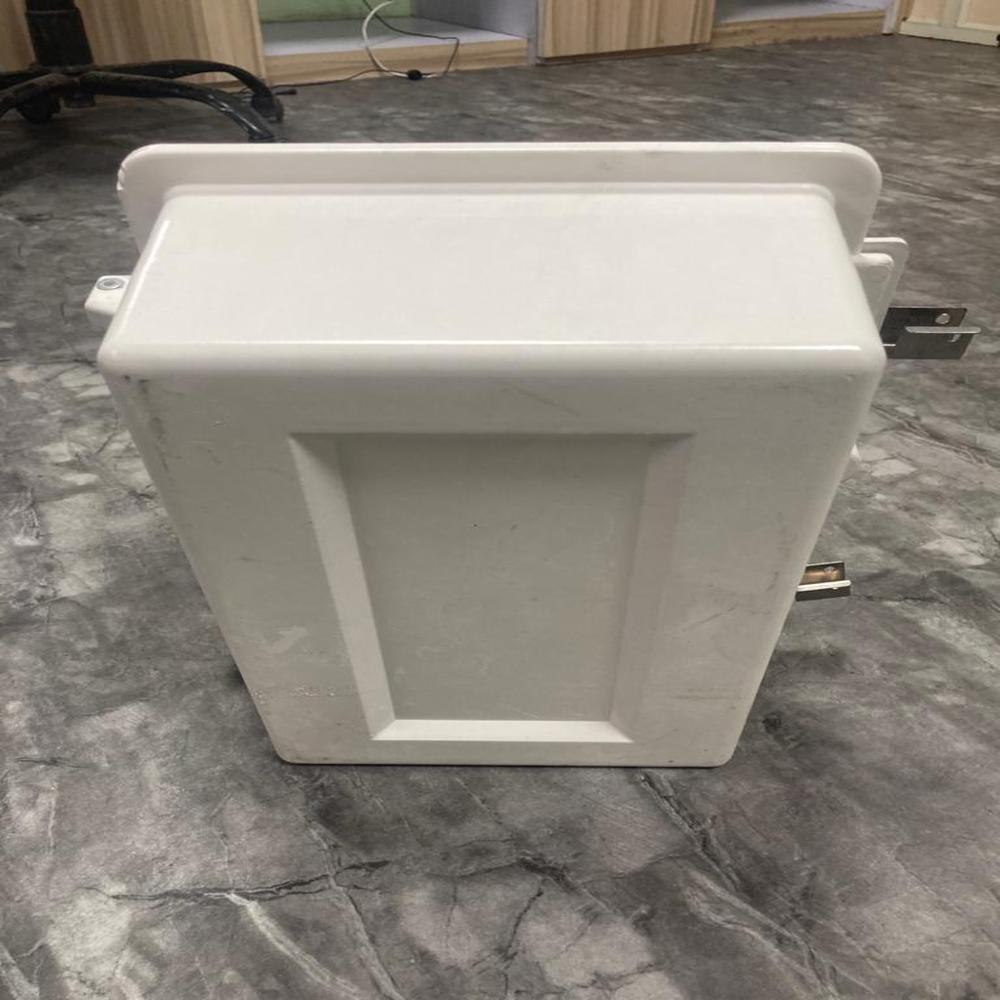

Street Light Pole Box

Name: Street Light Pole Box
Brand: RESHMA MOULDING WORKS
Price: 279 INR
Availability: InStock

Price 279 INR/ Unit

Get a Price/Quote

MOQ : 50 Units

Street Light Pole Box Specification

Product Type
Street Light Pole Junction Box

Material
Polycarbonate (PC)

Protection Level
IP55

Surface Treatment
Powder Coated

External Size
120mm x 80mm x 220mm

Thickness
2 mm

Paint Finishing
Matte

Accuracy
High

Dimension (L*W*H)
120mm x 80mm x 220mm

Weight
350g

Color
Gray

Mounting Type
Wall/Pole Mounted

Cable Entry Diameter
20mm

Standards Followed
IS 13947-1

Operating Temperature
-10C to +55C

Cover Type
Hinged with screw lock

UV Resistance
Yes

Insulation Resistance
>1000 M

Ingress Protection
IP55

Flame Retardancy
Yes

Number of Entry Holes
2

Application
Outdoor street lighting pole wiring

Street Light Pole Box Trade Information

Minimum Order Quantity
50 Units

Supply Ability
100 Units Per Day

Delivery Time
3 Days

About Street Light Pole Box

Technical Specification

Number of Ways	3 Way
Material	FRP
Size (mm)	300 X 200 X 125 mm
Brand	RMW
Color	White
Number Of Locks	2
Temperature (Degree Celsius)	180 Degree C
Door Thickness (millimetre)	2.7 mm
Mounting Type	Pole & Wall Mounted
Cable Entry	Bottom Entry
Weight (kg)	1.5 Kg
IP Rating	IP65
Usage/Application	Junction Boxes
Shape	Rectangular

Superior Protection for Outdoor Installations

This Street Light Pole Box is purpose-built to protect electrical connections for street lighting. Featuring an IP55 rating, the enclosure resists dust and water ingress, while its flame retardant and UV-resistant properties make it a reliable choice for a variety of harsh outdoor environments. The powder-coated surface further guards against corrosion, ensuring longevity and consistent performance.

Versatile and User-Friendly Design

With its compact 120mm x 80mm x 220mm size and dual mounting options, the box easily adapts to wall or pole installations. Two 20mm entry holes facilitate straightforward cable management during setup. The hinged cover with a screw lock allows simple access for maintenance, making ongoing service safe and efficient.

FAQs of Street Light Pole Box:

Q: How is the Street Light Pole Box installed for different applications?

A: This pole box can be wall-mounted or fixed onto a pole, allowing flexible deployment depending on site requirements. The provided entry holes and mounting hardware streamline the installation process for both configurations.

Q: What level of protection does the enclosure offer against environmental factors?

A: With an IP55 rating, the box safeguards internal components against dust and water jets. Its UV-resistant and flame-retardant polycarbonate construction ensures reliable performance even under harsh sunlight or high temperatures.

Q: When is the Street Light Pole Box most beneficial to use?

A: This box is ideal for outdoor environmentsparticularly for street lighting poles, where safeguarding electrical connections from weather and physical hazards is critical. It is useful during both new installations and maintenance upgrades.

Q: Where can the Street Light Pole Box be deployed effectively?

A: The enclosure is suited for external installations on streets, public parks, and parking lot lighting poles, anywhere reliable protection of electrical wiring is required in an outdoor setting.

Q: What process should be followed to ensure proper cable entry and sealing?

A: Feed cables through the two 20mm diameter entry holes. Ensure entry points are fitted with suitable grommets or sealing accessories to maintain the IP55 ingress protection rating during installation.

Q: How does the hinged cover with a screw lock benefit ongoing maintenance?

A: The hinged design enables convenient access for inspections and repairs, while the screw lock mechanism secures the cover against unauthorized or accidental opening, boosting overall site safety.

Q: What standards and safety features does this box comply with?

A: The Street Light Pole Box meets IS 13947-1 standards, offers high insulation resistance (>1000 M), and is constructed from flame retardant, UV-resistant materials to provide enhanced safety and reliability in demanding environments.
